Uninterrupted Visibility: Solar-Powered Intelligence
Eliminate the risk of dead batteries and lost assets with our autonomous tracking technology.
Engineered for Reliability
At SatelTrack, we don’t just provide tracking; we deliver operational intelligence. With over 25 years of experience, our solutions are engineered to withstand the most demanding environments—from the rugged construction sites in Northwest Arkansas to complex logistics corridors across Mexico. Our industrial-grade hardware and the AVLTS platform ensure that your data is accurate, secure, and available when you need it most.
100% Autonomous Operation
Designed for long-term deployment on non-powered assets. The high-efficiency solar panel keeps the internal battery charged indefinitely, ensuring your containers, trailers, or equipment are always visible, even in remote locations.
Industrial-Grade Durability
Built to withstand the toughest conditions. With an IP67 weatherproof rating, our Solar Tracker operates flawlessly through Arkansas storms and extreme temperatures, providing a rugged solution for construction and outdoor logistics.
Smart Energy Management
The device intelligently adjusts its reporting frequency based on movement and battery levels, optimizing data transmission without ever losing a signal.
Ideal for Assets Without Power
Construction Equipment
Generators, light towers, and mobile site offices.
Logistics & Shipping
Dry vans, trailers, and intermodal containers.
Agribusiness
Heavy machinery and farm trailers in open-field operations.
Stop Charging, start tracking.

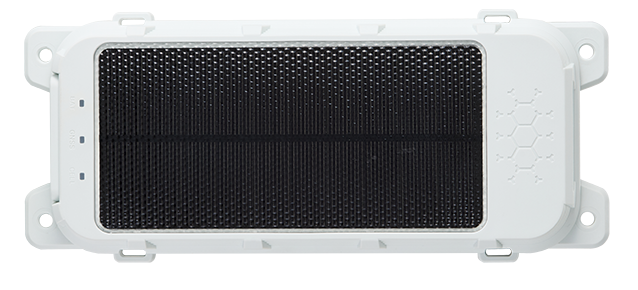

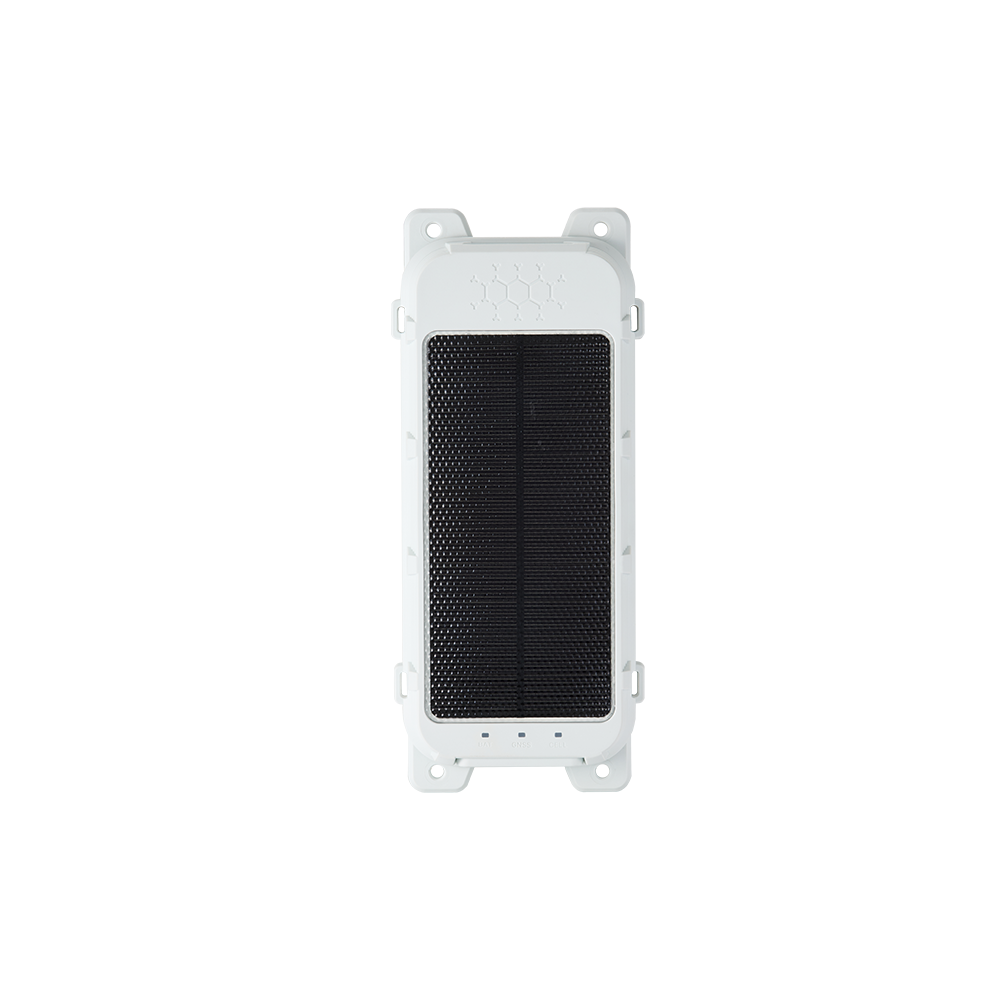

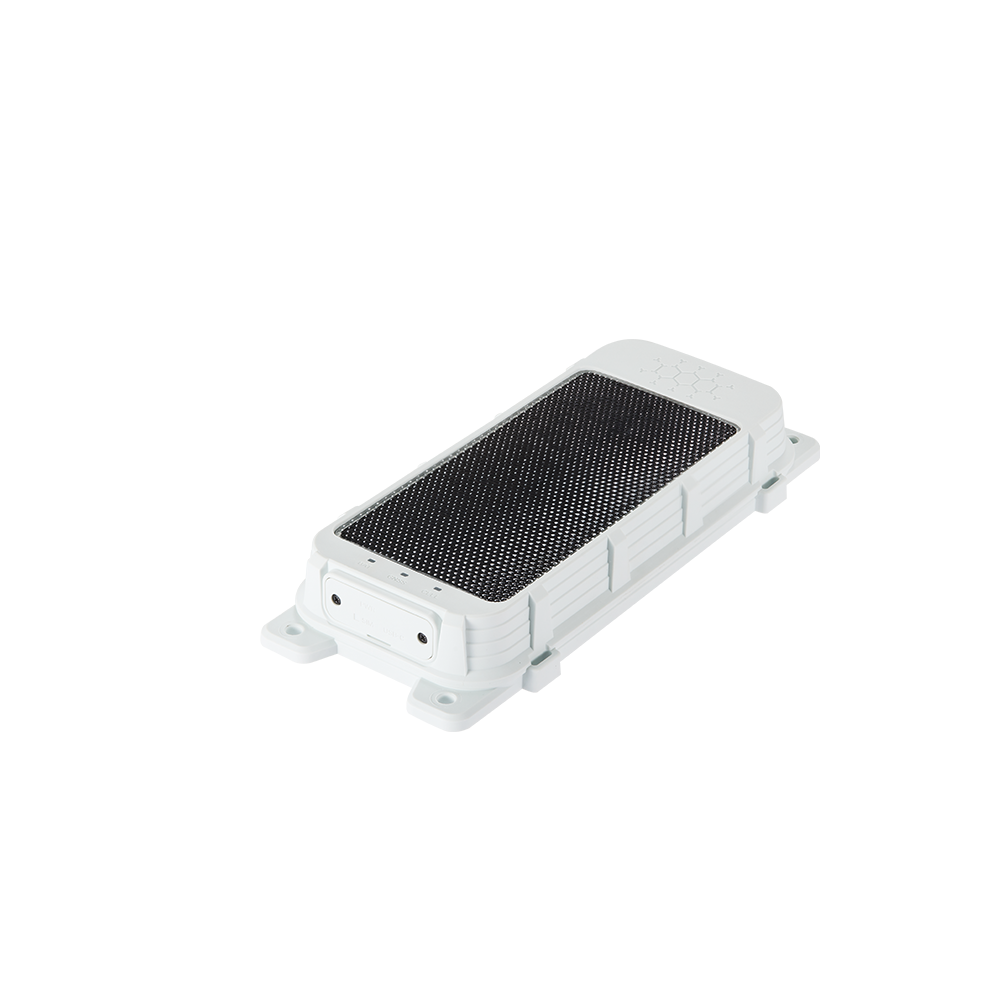

- Cat.1 bis Solar Asset Tracker
- The Most Rugged IP68-Rated Body
- Wifi Indoor location, BLE 5.4 Scan support
- Backup battery rechargeable via USB-C
Features
- LTE Cat.1 bis and multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS)
- High-efficiency solar panel (Max 1.8W) and High-Capacity backup battery
- Wi-Fi scanning for indoor location tracking / BLE 5.4 sensor scan support
- C-type charging, SIM card insertion, and power on/off without disassembling the device
- Optional LoRa/RF backup communication
- IP68-rated rugged design for harsh environments
- 6-axis sensor enables more precise motion detection

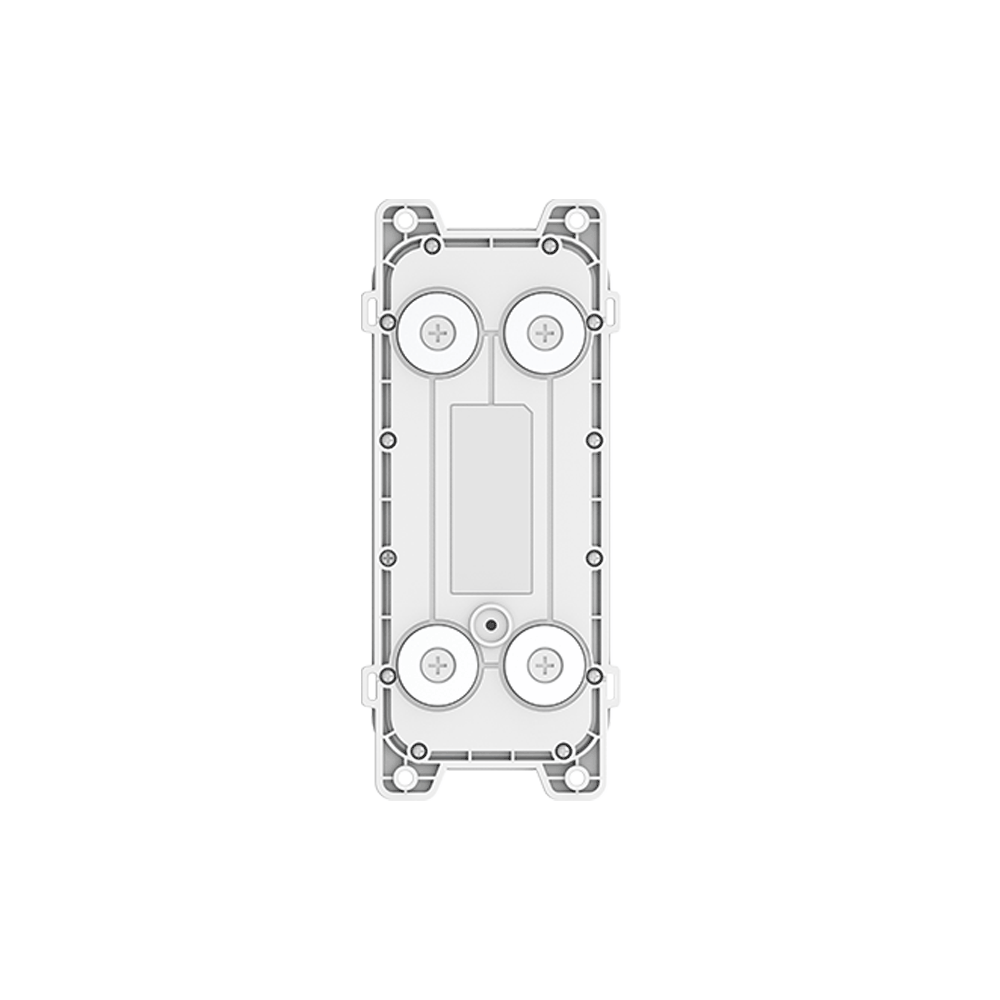

- Easy installation without cradle (screws, magnets, straps)
Specifications
Wireless Communication
- ConnectivityLTE Cat. 1 bis
- Operating FrequencyLTE FDD : B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE TDD : B34, B38, B39, B40, B41
Optional: Only 1 part
– 433MHz (SL2P)
– 900MHz LoRa (SX1276) - Transmission Protocol TCP / UDP / SMS
- BluetoothBLE 5.4 (2.4Ghz Support)
- Wi-Fi scan support (2.4GHz)
GNSS
- Receiver TypeGPS (L1)
GLONASS (L1OF)
Glonass (E1)
BeiDou (B1)
QZSS and SBAS ranging - Update Rate1Hz
- Cold Start (TTFF)33s
- Hot Start (TTFF)1s
- Tracking SensitivityTracking -161dBm / Reacquisition -156dBm / Acquisition -144dBm
Physical
- Dimensions 201 × 88 × 31 mm
- Weight 540g
Hardware (Interface)
- LED Indicators3 Indicators / BAT, GNSS, CELL
- Features- Security Alarm : Alert for Low battery, Route deviation, Over speed, Specific sensors triggered
– Basic Data reported : NMEA location, Speed, Course, GPS signal status, Events, LTE/GSM Cell ID, Message No., battery voltage
– Data storage : Up to 10,000 locations
– Battery voltage check support
– Report Back up: Possible (dual IP reporting or Backup SMS reporting) - Motion Sensor6-Axis Accelerometer (gyroscope + accelerometer)

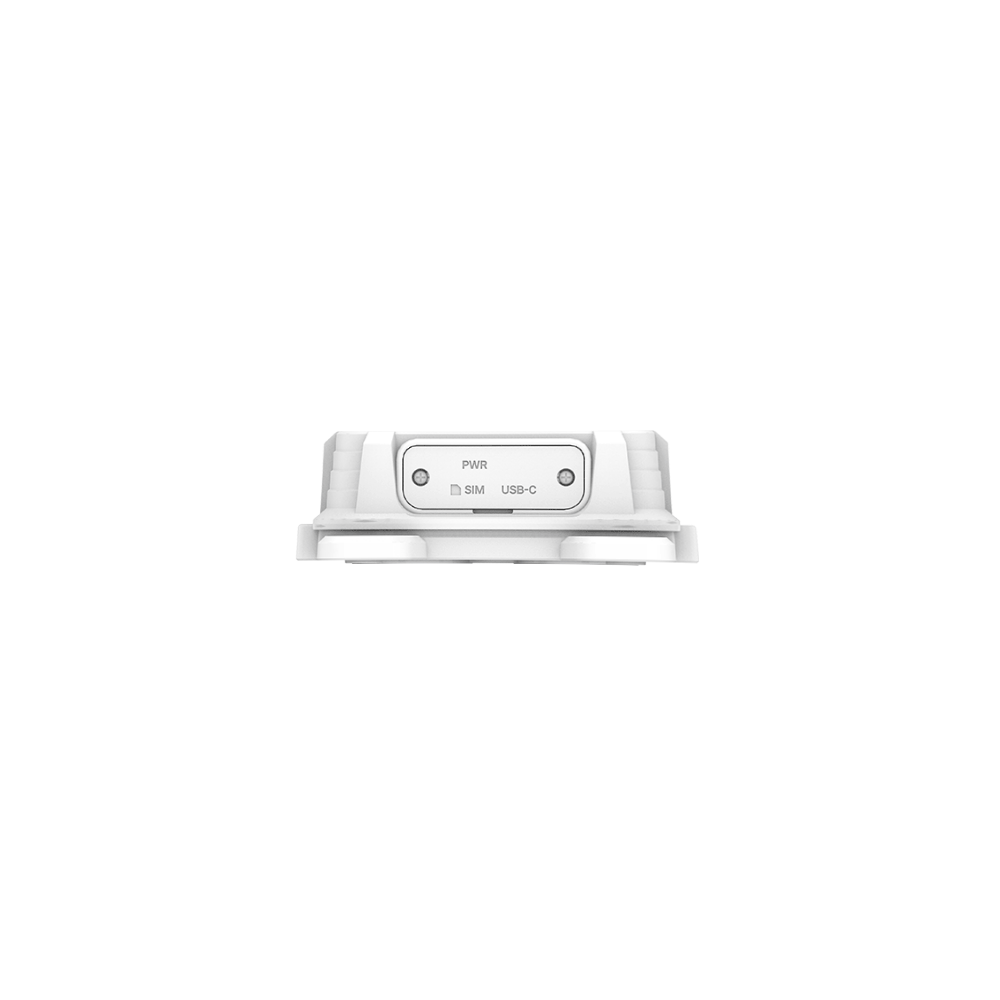

- User Interface SIM Card Slot, C-type port, On/Off button for Software, Self Sustaining Solar Power
- SIM Card Type4FF (Nano SIM card)
Battery/Power
- BatteryRechargeable Li-ion 3.7V / 12,000mAh
- PowerBattery-Operated
- Power SupplyUSB Type-C, 5V/1A (recharger) / Solar panel: Max. 1.8W
- Power ConsumptionNormal mode: 50~70mA (3min interval report)
- Deep sleep mode: under 2mA (1hour interval report)
- Deep sleep mode: under 30uA (floor current)
Environmental
Region Global
Dust & Water Resistance IP68
Operating Temperature-20˚C ~ +80˚C
*Caution: Do not leave the vehicle under direct sunlight for a long time in hot weather. Prolonged exposure may cause the battery to overheat or explode.
Certifications: FCC, PTCRB, IC(on-going), NOM
Available NWA, USA & Mexico
